devolo-dlan-cockpit-5.2.0.185 with gentoo

One year ago I have posted a gentoo ebuild for the devolo dlan cockpit software in the article devolo-dlan-cockpit-5.1.6.2 with gentoo. In the meanwhile Devolo has published a newer version. The new version 5.2.0.185 feels more or less the same as the old one, but most probably some bugs have been fixed.

The main purposes of devolo-dlan-cockpit are:

  • Firmware upgrades for the network adapters
  • Monitoring the performance
  • Configuring the network adapters

Firmware upgrades are more or less plug and play. One has to click the Updates-Button and everything else happens automagically. Monitoring the network performance with devolo-dlan-cockpit is of major interest, since it allows one to try out different wall sockets for better performance with nearly zero effort. If one gets poor performance it can be of major impact just to use another wall socket in the same room.

Dlan-cockpit is available for most common operating systems. However, the only Linux distribution, Devolo supports right now is Ubuntu Linux. Most probably, the package will also work with Debian. Allthough these are binary packages, the application can also be used with Gentoo Linux. For this two binaries have to be executed /usr/bin/devolonetsvc, the service daemon and /opt/devolo/dlancockpit/bin/dlancockpit, the frontend application which depends on the service. Usually devolonetsvc is being started by an initrd script, but the one included in the package is not going to work with gentoo, so just start it manually as root user. If one really needs it that often, an own startup script or systemd configuration can be written. Below you can see a screenshot of the application.

Screenshot of devolo dlan-cockpit 5.2.0.185

The Gentoo way

For gentoo users here is my overlay including the updated devolo-dlan-cockpit ebuild: devolo-dlan-cockpit-5.2.0.185_overlay.tar.gz (111 downloads ) . It also contains an adobe-air-runtime ebuild as necessary dependency. The adobe-air-runtime ebuild has been taken from steam-overlay. Download the overlay and extract it in /var/db/repos/local. Be sure to include a file local.conf in your /etc/portage/repos.conf directory with the following content:

[local]
location = /var/db/repos/local

Then emerge devolo-dlan-cockpit and configure your dlan adapters using your gentoo box.

Jürgen

1 Star2 Stars3 Stars4 Stars5 Stars (No Ratings Yet)
Loading...

devolo-dlan-cockpit-5.1.6.2 with gentoo

Quite a while ago I have posted a gentoo ebuild for the devolo dlan cockpit software in the article devolo-dlan-cockpit-4.2.3 with gentoo. After having purchased some devolo Magic 2 PowerLan adapters to extend the existing Devolo dlan 1200 network, I have found out that the old version 4.3.3 of devolo-dlancopit does not support the new Magic 2 adapters. The Magic 2 adapters turned out to be incompatible with the dlan 1200 adapters anyway, but that is a different story. Looks like replacing the existing adapters is the next step. At least the newer version of devolo-dlan-cockpit supports both adapter types.

Devolo offers the application devolo-dlan-cockpit for download. The main purposes of devolo-dlan-cockpit are:

  • Firmware upgrades for the network adapters
  • Monitoring the performance
  • Configuring the network adapters

Firmware upgrades are more or less plug and play. One has to click the Updates-Button and everything else happens automagically. Monitoring the network performance with devolo-dlan-cockpit is of major interest, since it allows one to try out different wall sockets for better performance with nearly zero effort. If one gets poor performance it can be of major impact just to use another wall socket in the same room.

Screenshot of devolo dlan-cockpit 5.1.6.2

Dlan-cockpit is available for most common operating systems. However, the only Linux distribution, Devolo supports right now is Ubuntu Linux. Most probably, the package will also work with Debian. Allthough these are binary packages, the application can also be used with Gentoo Linux. For this two binaries have to be executed /usr/bin/devolonetsvc, the service daemon and /opt/devolo/dlancockpit/bin/dlancockpit, the frontend application which depends on the service. Usually devolonetsvc is being started by an initrd script, but the one included in the package is not going to work with gentoo, so just start it manually as root user. If one really needs it that often, an own startup script or systemd configuration can be written. Below you can see a screenshot of the application.

The Gentoo way

For gentoo users here is my overlay including the updated devolo-dlan-cockpit ebuild: devolo-dlan-cockpit-5.1.6.2_overlay.tar.gz (408 downloads ) . It also contains an adobe-air-runtime ebuild as necessary dependency. The adobe-air-runtime ebuild has been taken from steam-overlay. Download the overlay and extract it in /usr/local/portage. Be sure to include the following line in your /etc/make.conf:

PORTDIR_OVERLAY=”/usr/local/portage”

Then emerge devolo-dlan-cockpit and configure your dlan adapters using your gentoo box.

Jürgen

1 Star2 Stars3 Stars4 Stars5 Stars (No Ratings Yet)
Loading...

devolo-dlan-cockpit-4.3.3 with gentoo

Recently I have found out, that the version 4.2.3 of devolo-dlancopit, for which I have posted a gentoo ebuild in the article devolo-dlan-cockpit-4.2.3 with gentoo, does not work fully anymore. It fails  downloading firmware updates for the Devolo dlan 1200 PowerLAN adapters. Most probably the download urls for firmware updates have changed recently.

Devolo offers the application devolo-dlan-cockpit for download. The main purposes of devolo-dlan-cockpit are:

  • Firmware upgrades for the network adapters
  • Monitoring the performance
  • Configuring the network adapters

Firmware upgrades are more or less plug and play. One has to click the Updates-Button and everything else happens automagically. Monitoring the network performance with devolo-dlan-cockpit is of major interest, since it allows one to try out different wall sockets for better performance with nearly zero efforts. If one gets poor performance it can be of major impact just to use another wall socket in the same room.

Dlan-cockpit is available for most common operating systems. However, the only Linux distribution, they support right now is Ubuntu Linux. Most probably, the package will also work with Debian. Allthough these are binary packages, the application can also be used with Gentoo Linux. For this two binaries have to be executed /usr/bin/devolonetsvc, the service daemon and /opt/devolo/dlancockpit/bin/dlancockpit, the frontend application which depends on the service. Usually devolonetsvc is being started by an initrd script, but the one included in the package is not going to work with gentoo, so just start it manually as root user. If one really needs it that often, an own startup script or systemd configuration can be written. Below you can see a screenshot of the application.

screenshot

Screenshot of devolo dlan-cockpit 4.3.3

The Gentoo way

For gentoo users here is my overlay including the updated devolo-dlan-cockpit ebuild: [download#99]. It also contains an adobe-air-runtime ebuild as necessary dependency. The adobe-air-runtime ebuild has been taken from steam-overlay. Download the overlay and extract it in /usr/local/portage. Be sure to include the following line in your /etc/make.conf:

PORTDIR_OVERLAY=”/usr/local/portage”

Then emerge devolo-dlan-cockpit and update your dlan adapters again using your gentoo box.

Jürgen

1 Star2 Stars3 Stars4 Stars5 Stars (No Ratings Yet)
Loading...

devolo-dlan-cockpit-4.2.3 with gentoo

Recently I have started using Devolo dlan 1200 PowerLAN adapters. With these one can get a network with up to 1Gbps without having to install additional wires by using the power lines. Of course the 1Gbps are optimum values under perfect conditions. Practically one gets 100 Mbps to 600 Mbps, but this is enough for most purposes.

Devolo offers the application devolo-dlan-cockpit for download. The main purposes of devolo-dlan-cockpit are:

  • Firmware upgrades for the network adapters
  • Monitoring the performance
  • Configuring the network adapters

Firmware upgrades are more or less plug and play. One has to click to click the Updates-Button and everything else happens automagically. Monitoring the network performance with devolo-dlan-cockpit  is of major interest, since it allows one to try out different wall sockets for better performance with nearly zero efforts. If one gets poor performance it can be of major impact just to use another wall socket in the same room.

Dlan-cockpit is available for most common operating systems. However, the only Linux distribution, they support right now is Ubuntu Linux. Most probably, the package will also work with Debian. Allthough these are binary packages, the application can also be used with Gentoo Linux. For this two binaries have to be executed /usr/bin/devolonetsvc, the service daemon and /opt/devolo/dlancockpit/bin/dlancockpit, the frontend application which depends on the service. Usually devolonetsvc is being started by an initrd script, but the one included in the package is not going to work with gentoo, so start just start it manually as root user. If one really needs it that often, an own startup script or systemd configuration can be written. Below you can see a screenshot of the application.

screenshot

Screenshot of devolo dlan-cockpit

The Gentoo way

For gentoo users here is my overlay including the devolo-dlan-cockpit ebuild: devolo-dlan-cockpit-4.2.3_overlay.tar.gz (1914 downloads ) . It also includes an adobe-air-runtime ebuild as necessary dependency. The adobe-air-runtime ebuild has been taken from steam-overlay. Download the overlay and extract it in /usr/local/portage. Be sure to include the following line in your /etc/make.conf:

PORTDIR_OVERLAY=”/usr/local/portage”

Then emerge devolo-dlan-cockpit and monitor your network nodes using your gentoo box.

Jürgen

1 Star2 Stars3 Stars4 Stars5 Stars (1 votes, average: 5.00 out of 5)
Loading...

glsldevil binaries

About one year ago I wrote about the OpenGL/GLSL debugger glsldevil in the article gentoo ebuild for glsldevil-1.1.5 and provided a gentoo ebuild for it. Unfortunately glsldevil seems not to be available anymore from the web page of the University of Stuttgart (http://cumbia.informatik.uni-stuttgart.de/glsldevil/), which has rendered the ebuild useless.

Edit 29/5/2012: The original download site of the University of Stuttgart is available again.

Since the license of glsldevil  permits redistribution, I decided to upload my local copy, to make glsldevil available for the public again. Unfortunately this only includes the Linux binaries (32bit and 64bit) and neither Windows binaries or the source code.

You can download the Linux binaries from here: [download#87]

For use with the ebuild, just copy the file to /usr/portage/distfiles/.

regards
Jürgen



1 Star2 Stars3 Stars4 Stars5 Stars (2 votes, average: 5.00 out of 5)
Loading...

Small bugfix in extcalllog callerid modification for N900

In the article Looking up phone numbers with the N900 I described a solution to perform reverse phone number lookups from within the N900s extended call log. The patch and thus also the binary package there contained a small bug. Whenever there were international calls, beginning with “00”, in the log, the reverse lookup failed due to the callerid application not interpreting the “00” correctly. The fixed extcalllog application now translates these trailing zeros to a “+” which gets interpreted correctly by the callerid application.

The downloads in the original article have been updated now.

Jürgen





1 Star2 Stars3 Stars4 Stars5 Stars (1 votes, average: 5.00 out of 5)
Loading...

Looking up phone numbers with the N900

Who does not know this situation. One returns to the phone and recognizes a missed call. Then one usually wants to know who the caller is, but the phone only displays an unknown phone number. Usually the next step is to google the number  or use a reverse number search to see who called, or at least from where the call came.  This article is about improving this situation using Nokia´s smartphone N900 .

Concept

Basically there are two applications for the N900 phone which can be used to improve the above scenario. These are callerid and extcalllog. The callerid application displays the details for the phone number of an incoming call. This is done by automatically accessing a reverse number search engine. If the number is not available in the database, which happens quite often due to privacy reasons, it compares the area code with a local database and displays at least the region, the call comes from. The extcalllog application displays the call history just as the phone application of the N900 does, but it has got two major advantages. First it is not restricted to the last 30 days as the N900s phone application is, second it is open source, thus it can be extended. This makes it possible to combine the functionality of extcalllog and callerid.

Prerequirements

As a prerequirement it is necessary to install and configure the callerid application for the users region. It is available from the  extras-devel repository. Configuration is done by supplying an xml file describing the reverse search. This file has to be placed in /opt/callerid/ and named correctly. For example the xml file for the german reverse number search must have the filename de.xml. The contents of the file, taken from [1] are being shown below.

<config>
  <directory>
    <query>http://www.klicktel.de/inverssuche/index/search?method=searchSimple&amp;_dvform_posted=1&amp;phoneNumber=</query>
    <name>
      <find class="namelink"/>
    </name>
    <address>
      <find class="data track"/>
    </address>
  </directory>
</config>

For displaying the area code in case of a failed reverse lookup a local database file has to be placed in /opt /callerid/.  For Germany this file must be named de.txt. It can be created from the official list of area codes, ONB, provided by the Bundesnetzagentur.  For convenience you can download the file in proper format for callerid from here: [download#78]. Copy it to your device and as root user extract it to /opt/callerid. Afterwards the device signals incoming calls with a notification containing the callers name and address or at least, if these are not available, the callers city.

Modifications

The next step is to extend the user interface to display the details for an incoming call. Since the default N900 phone application is not open source, the extcallog application is the only application which is extensible for this purpose. It also is available from the extras-devel repository. For the new functionallity an additional button has to be added to the user interface, which calls the callerid application with the phone number for the log entry. For this the extcalllog applications source has to be extended using my patch. You may download the patch from here: [download#79]. For convenience a binary with the patched version can be downloaded from here: [download#80]. Download the binary to the device and install it with, dpkg -i extcalllog_0.6-callerid_armel.deb as root user. Or open the download in the phones browser and install it using the hildon application manager.

Usage

After installing the modified extcalllog application, it can be used as shown in figures 1 to 4. The figures show screenshots of the extcalllog application.

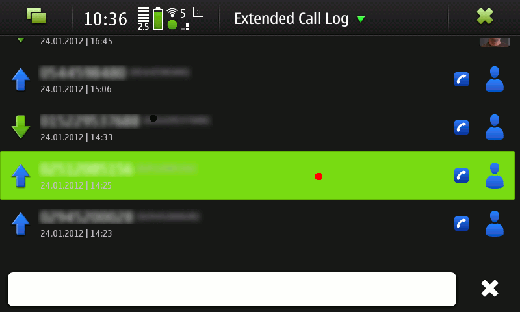

callerid
Figure 1: Selection of an entry in the callerid application

After tapping onto one entry of the call list (marked in red) the details page of the call is being opened. Figure 2 shows this page.

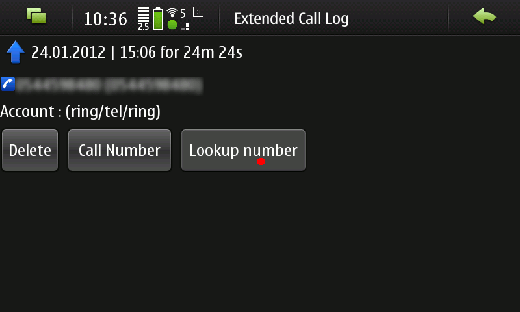

callerid details page
Figure2: Details page of a call with the “Lookup Number” button

The details page looks like the original one of the extcalllog application, but has got one more button, the “Lookup Number” button (also marked with a red point). After tapping onto the “Lookup Number” button the callerid application gets called for the callers number and displays the notification containing the callers details shown in Figure 3. (callers details are indecipherable in the screenshot, due to privacy reasons)

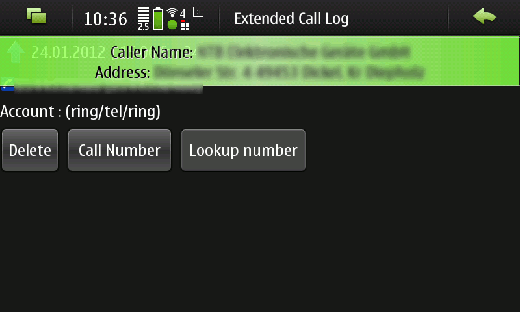

shot_callerid_3
Figure 3: Notification with callers details

If the callers details are not available using the reverse number search, then only a notification displaying the callers town, like in figure 4, is being shown.

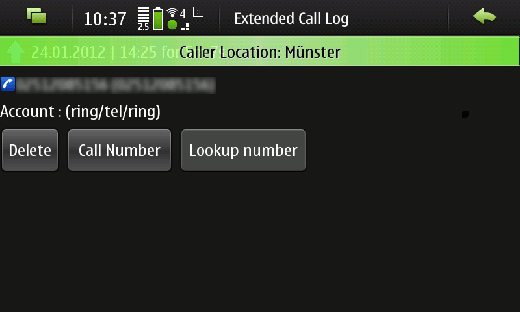

shot_callerid_4
Figure 4: Notification containing callers town only

Now the N900 user is able to find out who the unknown caller is, or at least he can find out  in which area he lives.

Jürgen

References:

[1] http://talk.maemo.org/showthread.php?t=70738

[2] http://talk.maemo.org/showthread.php?t=42700
